Rebuilding old Power pack (Hitachi B-2 for DRC-10K)

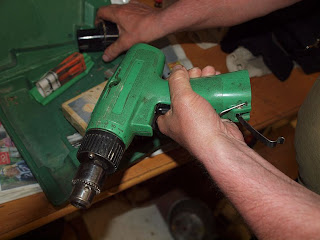

Hitachi DRC-10K... Slightly used, like 30 years
My father has this three decades old Hitachi DRC-10K cordless drill and against all odds it has proven to be nearly indestructible. Unfortunately rechargeable NiCd batteries tend to wear out and thus need replacement sooner or later. Even thought 3rd party power packs are still available those tend to cost around 40 Euros (50USD) before delivery, taxes etc.. And quite frankly you can purchase all new cordless drill with price like that.

B-2 type power pack (once opened)
So.. Alternative is to replace the battery elements inside power pack. It's actually quite easy to do and saves easily over 30€ when compared of purchasing new pack. Of course it'll take some time and effort, but for someone willing to DIY and values recycling, it's the right way to go.

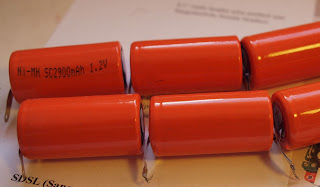

Six new NiMh cells soldered together
First part of project is opening the battery pack and checking what type and size the batteries are. Opening the pack depends a lot of the pack itself. Hitachi's original B-2 battery is sealed with some kind of glue, so you'll need to use some real force and mechanical tools. I had opened this particular pack earlier (10+ years ago?) and by the looks of it, I must have used tools like hacksaw, sharp knife and screwdrivers. In the end the tools don't matter so much, as long as you don't break the cells inside pack or hurt yourself.

Heatshrink protecting joints
After opening the pack one has to check what size the rechargeable cells are. At B-2, there are six sub-C elements (size approx. 40*20mm). For this purpose it's convenient to use cells with metal tabs on them. Easiest way to get cheap replacement cells is to search net sellers from sites like Ebay. Unfortunately I can't really recommend any of those stores, since they tend sell whatever is available, thus there is no real guarantee of the quality or capacity of the cells.

After opening the power pack you'll need to unsolder the power wires from old batteries and start preparing the new ones.  First duplicate the layout of the batteries and solder metal tabs together. As these differ for each pack I can't give more explicit guide here. Just be sure to check polarities and cnnect the batteries just like old ones were and it will be ok.

Twist, test and solder power connector
With B-2 power pack it made sense to build two sets with 3 batteries each and bend them so that they fit into existing enclosure. I decided to use soldering which is ok, as long as on don't burn the batteries with overheat. I also decided to cover connections with heat shrink tube.

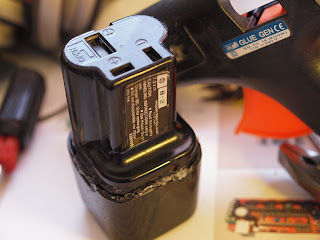

Next is soldering the power connector wires to batteries (remember polarity) and stuffing these renewed innards inside existing power pack enclosure. I decided to use some hot glue to keep power pack safely closed.

Rebuild powerpack alongside modified Hitachi charger
For testing I did charge the battery pack with modified hitachi charger. The original charger (30 years old) was designed for using with NiCD only. Since NiCD are harmful to environment I have lately been using NiMh batteries instead. With NiMh batteries there was need for new type smart charger (with Delta-V detection). As a bonus this new charger is also faster and can handle both types of batteries.

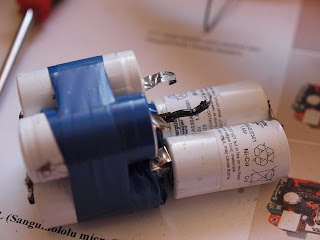

Old NiCd batteries I've used years ago
After a couple hour recharge, the power pack was inserted to drill and tested to be on working condition. I have not done any power tests so I have no idea how good these new batteries are, but I'll expect to hear comments as soon as my father needs the drill next time for some tinkering project he has.

And that leaves the last part, trash disposal. Making sure that those old used NiCd batteries I had used years ago at previous Rebuild will be properly handled and processed as an special garbage. I have no idea how harmful NiCd batteries really are, but at least in EU area those are under strict control, so one has to be careful how to dispose them.
